About Us
Reducing Flanges, a division of Texas Flange & Fittings Inc. Houston, Texas, since 1986.
Reducing Flanges is the reducing pattern desk of Texas Flange & Fittings Inc., a Houston flange supplier machining industrial pipe flanges since 1986.
Texas Flange supplies ASME and non-code industrial pipe flanges for the petrochemical, process and waterworks industries. Sizes 1/2 inch through 203 inches, pressure classes 75 through API 20K, in carbon steel, stainless, chrome alloy, duplex and specialty grades, with material test reports available throughout.
A reducing flange is a simple idea that causes a surprising amount of trouble. The flange ring, the outside diameter, thickness and bolt pattern, is that of the larger pipe size. The bore, and on a weld neck the hub, is that of the smaller size. One part, two sizes, and no separate reducer in the line.
It gets specified to save a fitting and a weld, or to tie a smaller branch into an existing bolt pattern that nobody wants to redrill. It gets specified wrongly when the flow cares about the abrupt transition, and part of our job at quote stage is to say so.
Capabilities
What we do
Reducing weld neck flanges
Larger ring, smaller hub and bore, machined to the ASME B16.5 pattern.
Reducing slip-on and threaded
The common small and mid bore reducing patterns, full larger-size thickness.
Reducing socket weld and lap joint
Small bore instrument and utility work, and loose ring arrangements.
Large diameter reducing patterns

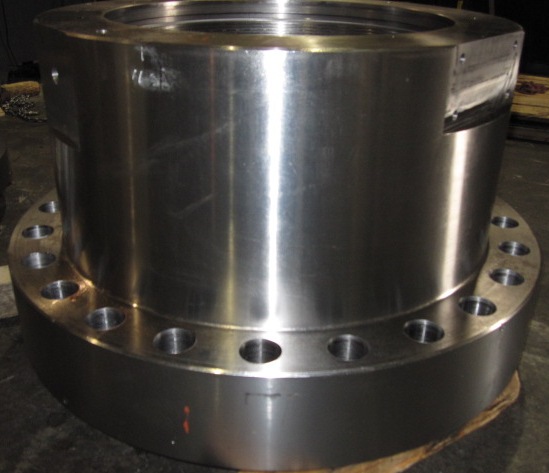

B16.47 Series A and B footprints, long weld necks and special body connectors.
The full material list
Carbon, chrome, stainless, duplex, aluminum, Hastelloy, Inconel, Incoloy, Monel and titanium.
Custom work to print
Past the published tables the job is a drawing. We machine to it, through 203 inches.
The numbers
| Supplying flanges since | 1986 |
|---|---|
| Size range | 1/2 inch through 203 inches |
| Pressure classes | 75, 125, 150, 175, 250, 300, 350, 400, 600, 900, 1500, 2500, and 5K, 10K, 15K, 20K |
| Standards | ASME, ANSI, API, AWWA, MSS, DIN and JIS, plus non-code and custom |
| Certification | Material test reports available on all grades |
| Location | Houston, Texas, USA |
Product lines we carry
- ANSI and ASME forged flanges
- MSS SP-44 and ASME B16.47 Series A flanges
- API Type 6A ring type joint face flanges
- API 605 and ASME B16.47 Series B flanges
- ASME boiler code flanges
- Class 125 lightweight flanges for low pressure service
- Plate flanges from 1/4 inch through 8 inch thick, including AWWA C-207
- ANSI long weld necks and special body connectors
- Studding outlets, also called pad flanges, flat bottom or radiused to fit
- Spectacle blinds, line blinds and paddle spacers
- DIN and JIS flanges
- Special ring flanges and orifice unions
We also supply stainless and alloy plate flame cutting, and galvanized carbon steel flanges. Some grades of steel are not stocked by any flange producer but are occasionally required. We source those and make them to your requirements.
For the full catalog, see Texas Flange.
Talk to the reducing flanges desk
Send the print, or send the size, class and grade. Texas Flange quotes quickly.
Request a QuoteOr call 281-484-8325 and ask for the reducing flanges desk.
